Benling original new electric compressor for car ac with 18cc 12V/24V voltage.

KingClima is the best supplier of electric ac compressor for car, we are the fist overseas supplier for Bengling compressor. We provide Benling original new electric compressor for car ac with 18cc 12V/24V voltage.

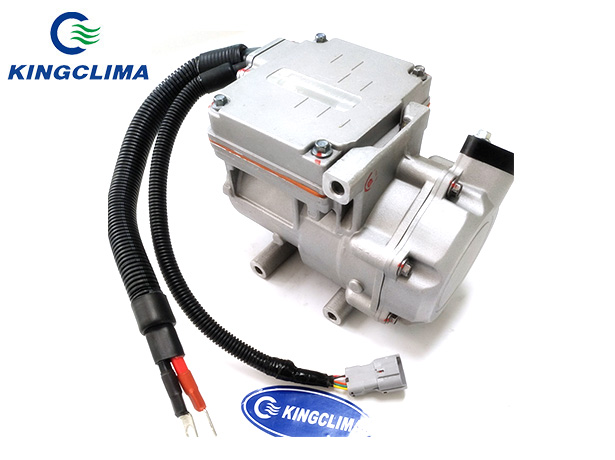

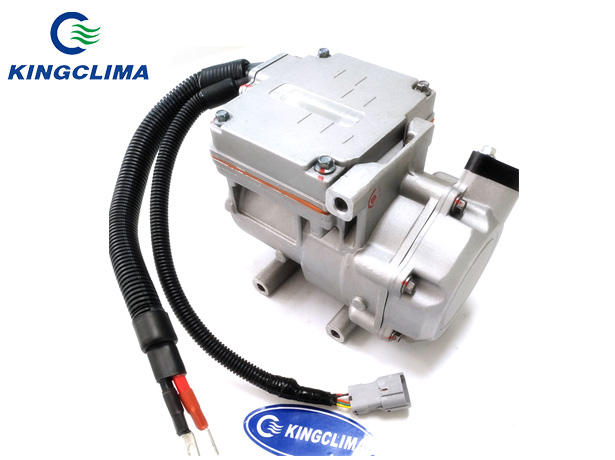

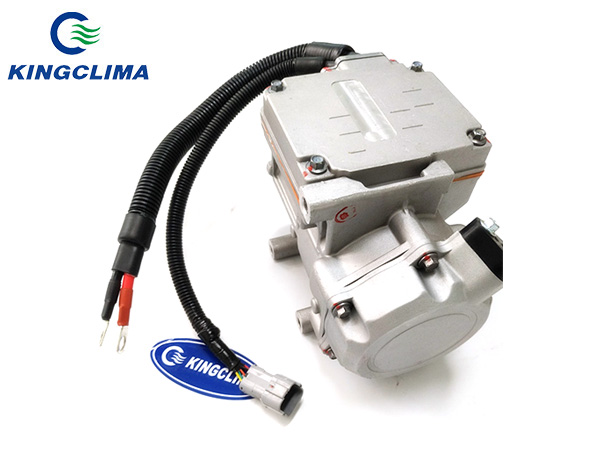

Here the DM18A6 electric compressor for car air conditioner is 24V 18cc discharge with 1600-6000 rotated speed. It is used for electric truck cooling solutions.
If the truck need to change its air conditioning system into electric parking air conditioning system, it needs this electric ac compressor for truck to retrofit.


Technical of DM18A6 Electric AC Compressor for Truck


Performance(DM18A6)
refrigerant capacity(3000 rpm)	1.38kw /4700 Btu/hr
input power	0.74 KW
current	30A
refrigerant capacity(4000 rpm)	189kw /6400 Btu/hr
input power	0.98KW
current	43A
refrigerant capacity(6000 rpm)	2.90kw /9900 Btu/hr
input power	1.16 KW
current	65A
test condition	Pd/Ps=1.47/0.196 Mpa(G) SC=5℃  SH=10℃
Usable range
evaporated temperature	12 °F ~  70°F
condenser temperature	77 °F ~  167°F
compression ratio	8.0 MAX
refrigerant	R134a
start temperature	-26 °F ~ 158 °F
working temperature	-26 °F ~ 212 °F
storing temperature	-40 °F ~ 221 °F
Compressor parameter
discharge capacity	18.0 cc/rev
weight	5.4kg
oil charge	100cc  PVE oil
refrigerant capacity	650cc
rotated speed rang	1800rpm---6000 rpm
safety valve pressure	4.0 Mpa
cover protection level	IP67
motor coil temperature	248°F MAX
discharge temperature	239°F MAX
Motor parameter
motor type	PMSM (permanent magnet synchronous motor
rated tortue	2.30 Nm
max tortue	refer to diagram
Drive parameter
max power	2000W
working frequency	30HZ-120HZ
over heating protection	212°F
low voltage protection	20V
over voltage protection	31V
soft hardware overload	yes
control method (common way)	1, pwm  2,gear 3,can 4-----
